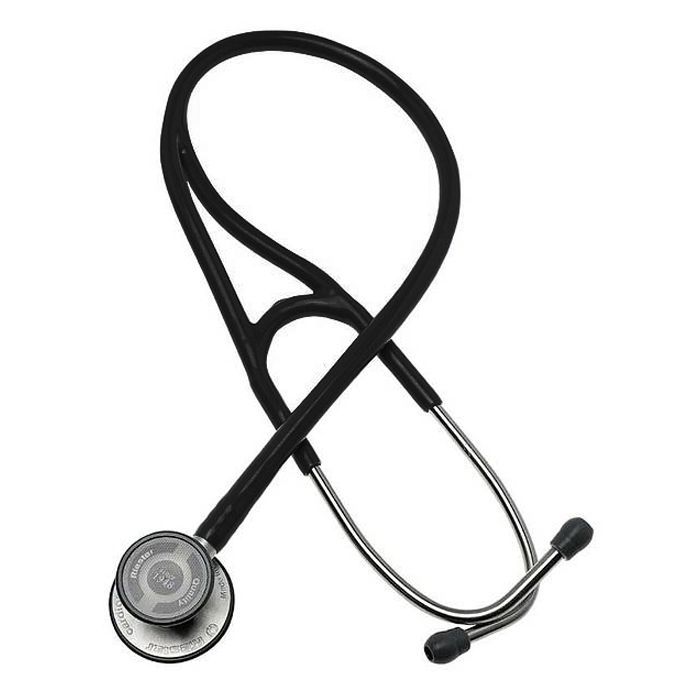

Riester Cardiophon stethoscope

Riester Cardiophon stethoscope

The cardiophon cardiology stethoscope is a masterpiece from Riester. With the highest quality double-headed chest-piece, it convinces with its superior acoustics in every situation. Especially in the frequency range between 200 Hz and 500 Hz, which is particularly important for the auscultation of heart sounds, the cardiophon provides unique acoustic performance. In comparison to previous models it was possible to improve the acoustics still further. The cardiophon is suitable for the precise auscultation of adults and children.

• Double-headed chest-piece made of stainless steel.
• Special membranes on both sides for precise acoustics, Ø 48 mm and 36 mm, with particularly flat and soft non-chill rims for improved adaptation on the skin.
• Anatomically shaped binaural made of stainless steel with reinforced, internal multiple spring.
• Soft, replaceable ear-tips with metal screw thread for comfortable and effective sealing of the external auditory canal.
• Extra-strong Y-tube made of PVC with separate sound-conducting pathways for the left and right ears with particularly good audio-conductivity.
• Overall length: 72 cm.
• Latex-free.
• The cardiophon is supplied with two pairs of replacement ear-tips, a replacement membrane each and a name plate.

Low frequency range		High frequency range Example duplex®

Extra-ordinary acoustic performance in the important frequency range for heart sounds between 200 Hz and 500 Hz.
Cardiophon: Frequency analysis 20 Hz – 100 Hz    max. 5.9 dB at 100 Hz   100 Hz – 1,500 Hz   max. 28.3 dB at 320 Hz
