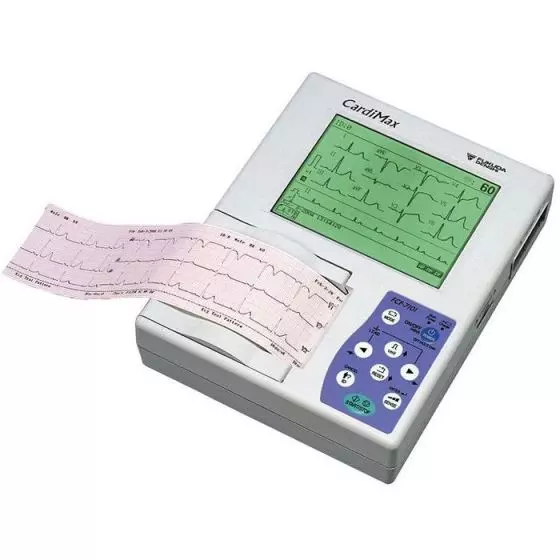

Fukuda Denshi ECG CardiMax FCP-7101

Fukuda Denshi ECG CardiMax FCP-7101

This Fukuda Denshi ECG weights only 1.2kg and is smaller than a standard A4 sheet. However, it offers high performances and a wide range of applications.

ECG :

12 standard leads
Frequency response : 0.05Hz to 150 Hz (within -3 dB)
Filters : AC :50 or 60 Hz
Muscle : 25 or 35 Hz
Drift : 0.25 or 0.5 HZ
Interpretation : Detection of Brugada criteria
Detection of Arrhythmia, Explanation of analysis criteria

Memory :
128 measurements

Display :
Large LCD screen (320 x 240 dots)
ECG display 3/6/12-channels

Interpretation / Arrhythima function

Recording:
Paper speed : 5, 10, 12.5, 25 or 50 mm/sec
1/3 channels on 50/63 mm paper
recording paper:  63 x 30 m

Interface :
Communication Port:  LAN port (10Base-T)

Battery autonomy: 3 hours

Size and Weight :
Dimension (L x W x H):  225 mm x 180 mm x 50 mm
Weight: 1,2 kg

Fukuda Denshi ECG CardiMax FCP-7101 accessories:

1 transport case
1 Mains adapter
1 patient cable
1 set of  6 chest electrodes and 4 clips
1 gel sample
1 paper roll
3 year warranty (doesn’t include the accessories)
CE 93/42 EEC Norm
